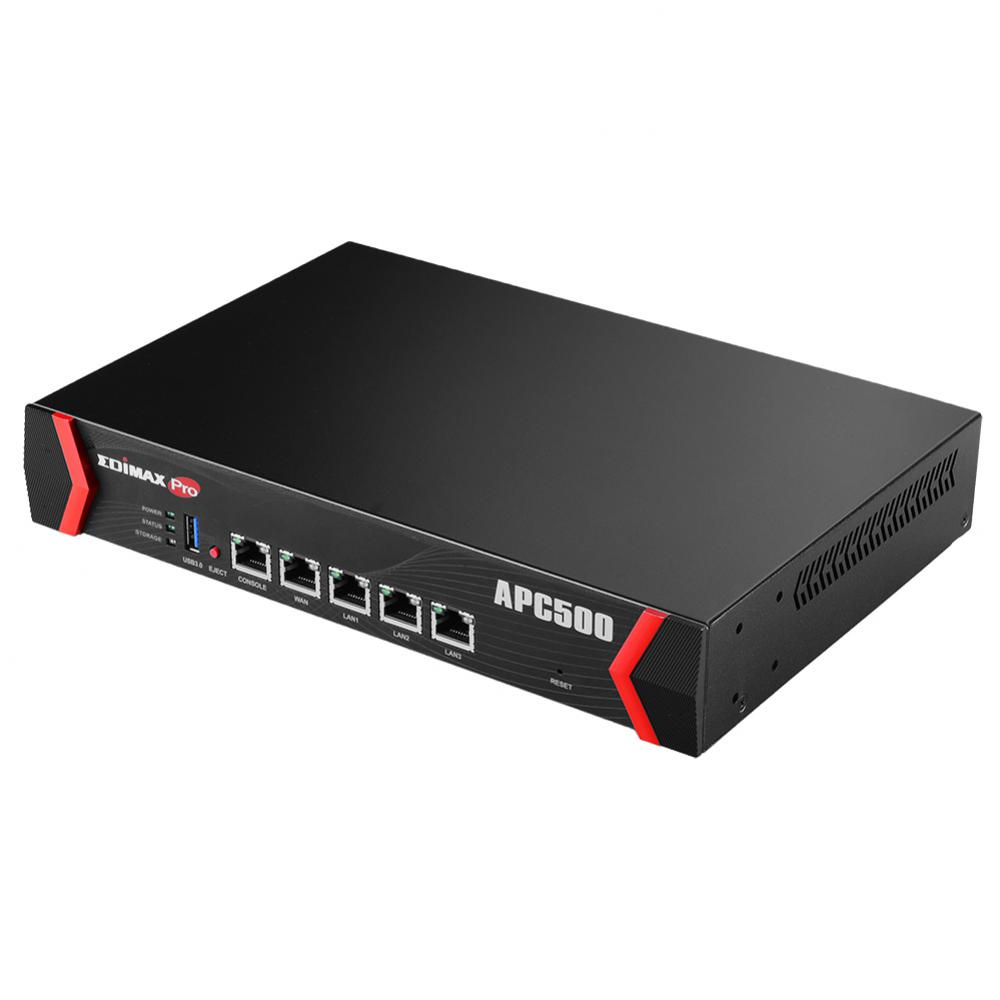

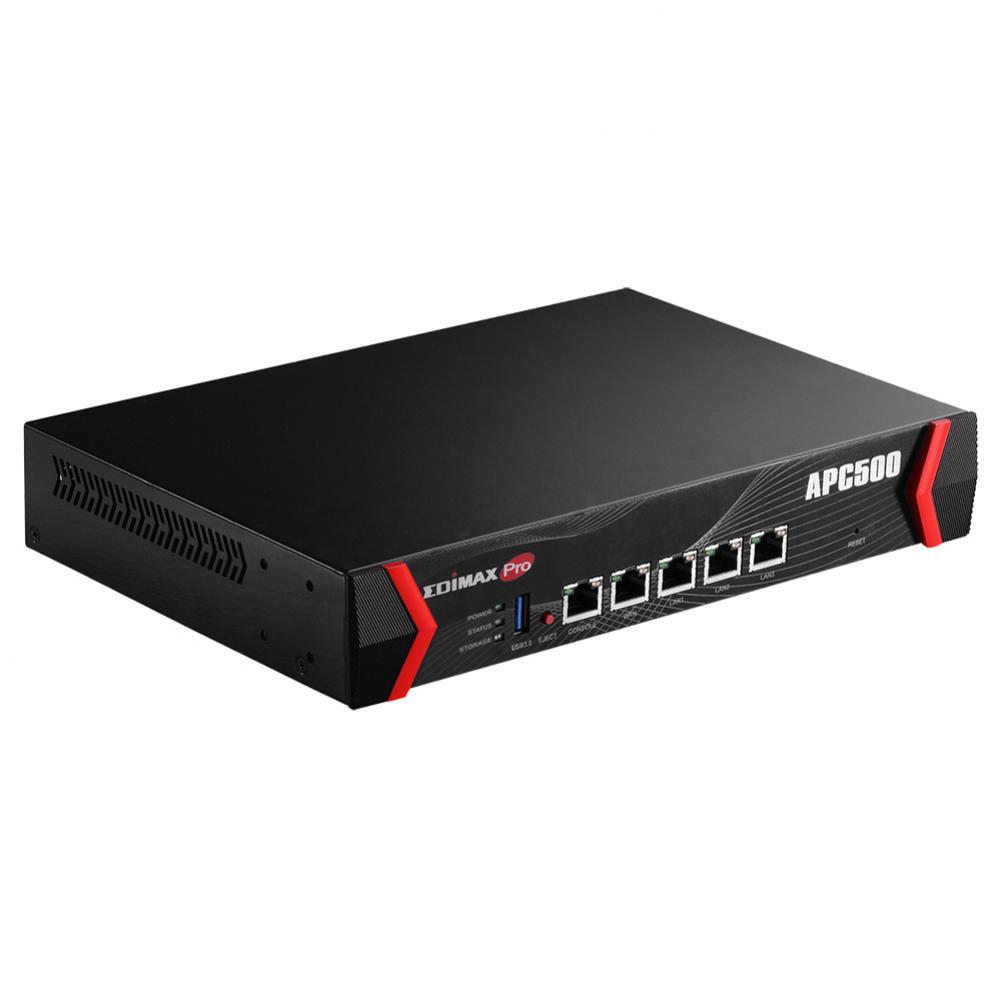

Wireless AP Controller


Code: APC500
Category: AP Controller
Weight: 1 Kg

Shipping

Payment


Share this :
  • Manage up to 30 Edimax Pro APs
  • Suitable for SMB/SME environments
  • Robust AP management
  • Local or built-in RADIUS (AAA) support for user and guest accounts
  • Batch setup/configuration
  • Group firmware upgrade & restart
  • Channel/RF power/load optimization
  • Flexible WLAN Groups
  • Reliable standalone box to support SMB heavy usage

Edimax Pro APC500 Wireless AP Controller is a device with web-based wireless network management system. Company MIS departments can plan and manage Edimax Pro access points’ powerful functionality according to their office space using an easy, remote web-based interface which includes a dashboard, map view, traffic statistics and wireless client list for network-wide remote administration. RADIUS settings, WLAN group settings, access control, guest network settings and firmware upgrades can all be managed centrally from a single location to reduce network downtime, aid troubleshooting and optimize network performance. Zone plans and setup wizards are also available for expanding and managing large networks with multiple access points.

Edimax WAP1750 3 x 3 AC Dual-Band Wall-Mount PoE Access Point, Edimax Pro central Network Management Suite (NMS)

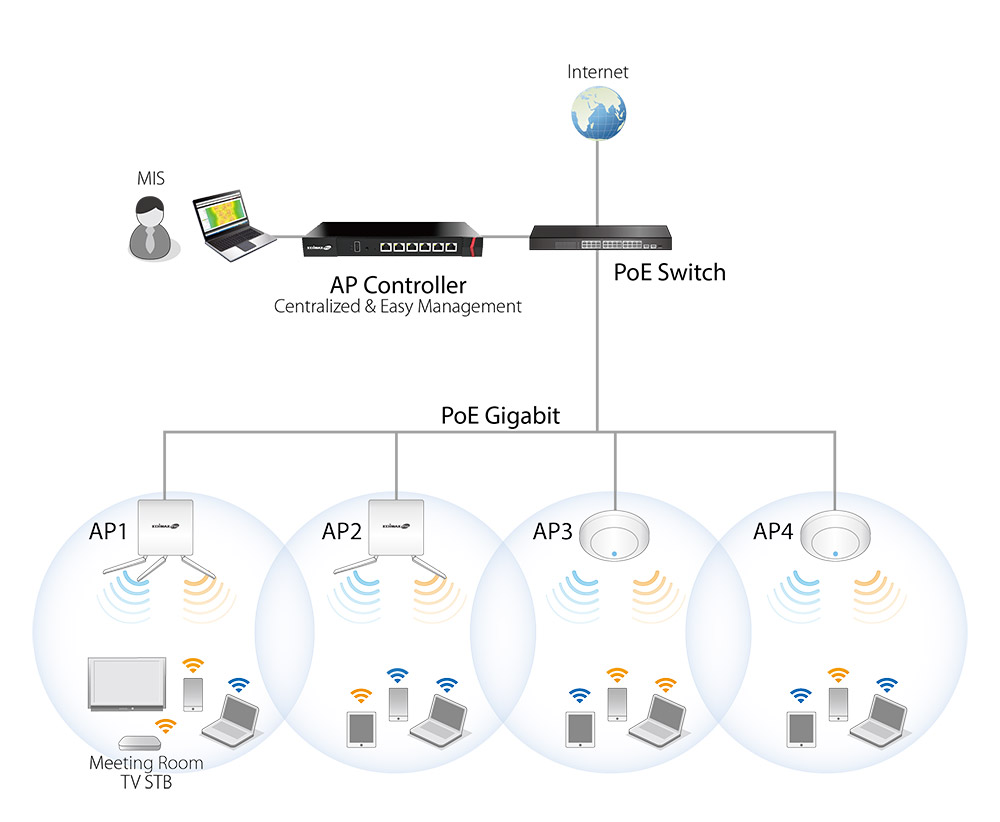

AP Array
Edimax Pro APC500 Wireless AP Controller supports AP array architecture, which enables the central management of a group of access points. NMS can be installed on one access point and support up to 30 Edimax Pro access points with facilitating efficient remote AP management. Access points can be deployed and configured according to requirements, creating a network powerful network architecture which can be easily managed and expanded in the future, with an easy to use interface and a full range of functionality for company MISs.​
Edimax APC500 Wireless AP Controller with Network Management Suite (NMS)
*Kinerja maksimal, kecepatan data yang aktual, dan jangkauan tergantung dari kondisi jaringan serta faktor lingkungan sekitar.
*Resolusi visual aktual dan kecepatan frame kamera jaringan tergantung dari kecepatan koneksi.
*Perubahan spesifikasi produk dan desain dilakukan tanpa adanya pemberitahuan.

SPECIFICATIONS

HARDWARE
H/W Standalone
License Free
Segment Middle
WAN Giga x 1
LAN Giga x 3
Console RJ45
MANAGEMENT
Managed Edimax Pro AP# 1-30
Managed IP Device V
Traffic Statistics Network Traffic/CPU Loading/Memory Usage
Guest Log V
Multiple Firmware Upgrade V
DEPLOYMENT
L2 Auto-Discovery V
AP Planning V
Locate AP (Buzzer/LED) V
WDS between APs V
Google Map Support Q3
RADIO RESOURCE MANAGEMENT
Client RSSI Threshold V
Dynamic Channel Selection V
Auto Pilot (Auto Channel/Power) V
SECURITY
MAC Filtering V
Blocking Intra-BSS Traffic V
Rogue AP Detection V
Wireless L2 Isolation V
ACCESS CONTROL
Captive Portal (Internal & External) V
Guest Account V
RADIUS Authentication V
RADIUS Accounting V
WIRELESS QoS
AP Load Balancing Q3
WLAN Station Bandwidth Limiting (Per-SSID) V
DIAGNOSTIC TOOL
Ping/Trace Route V
PHYSICAL
Primary/Secondary Controller Support Q3
SOFTWARE FUNCTION ITEMS
Active AP 30
AP Groups 30
WLAN SSIDs 200
WLAN Groups 30
RADIUS Accounts 1024
RADIUS Groups 30
Access Control (White-Black List) 1024
Access Control Groups 30
Guest Newtork SSIDs 200
Guest Network Groups 30
Guest Accounts 8


*Q3: Available in 2015 Q3 *Kinerja maksimal, kecepatan data yang aktual, dan jangkauan tergantung dari kondisi jaringan serta faktor lingkungan sekitar.
*Resolusi visual aktual dan kecepatan frame kamera jaringan tergantung dari kecepatan koneksi.
*Perubahan spesifikasi produk dan desain dilakukan tanpa adanya pemberitahuan.
