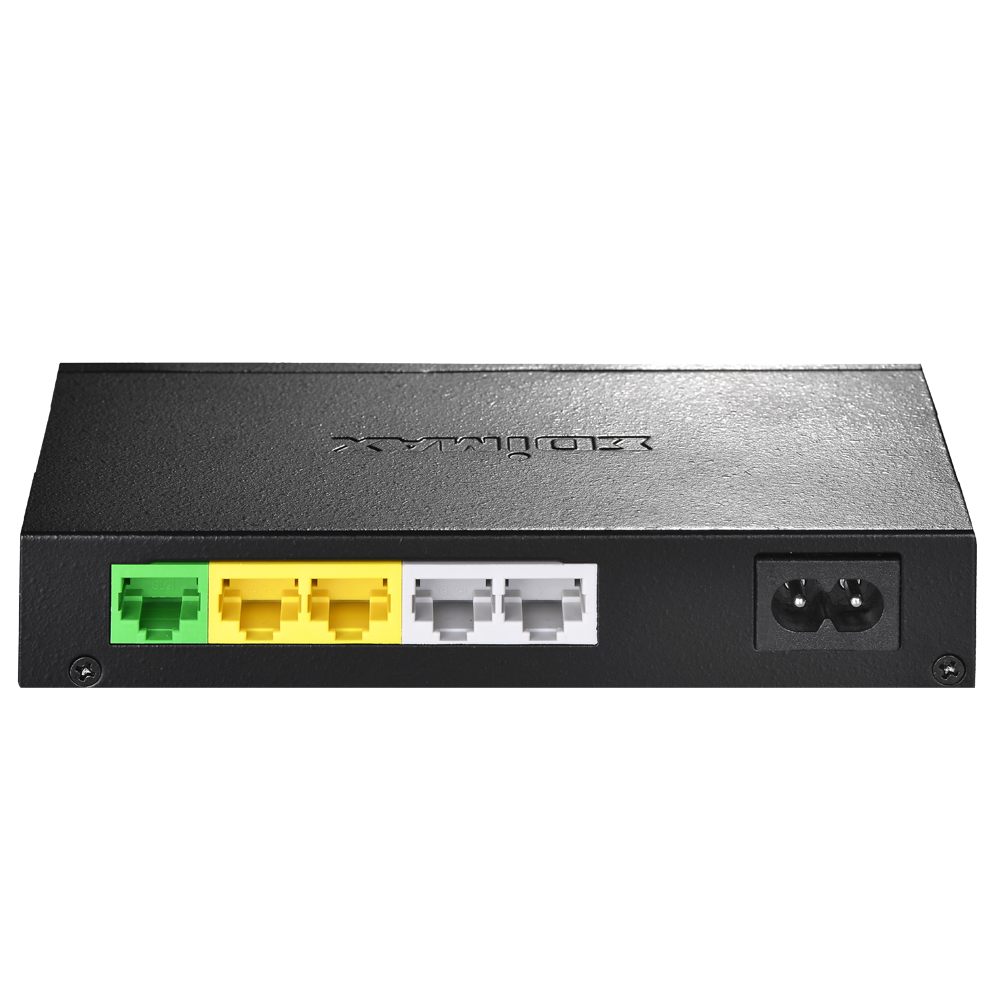

ES-5500M V2
ES-5500M V2

ES-5500M V2

5-Port Gigabit Desktop Switch (Internal Power)


Code: ES-5500M V2
Category: Switches / Unmanagement
Weight: 1 Kg

Shipping

Payment


Share this :

The ES-5500M V2 5-Port Gigabit Desktop Switch is designed to enhance network performance while maintaining a compact form factor. It boasts outstanding performance and high efficiency, and its store and forward packet-switching technology offers reliable data transfer, which makes it ideal for network connectivity in the SOHO environment.

The ES-5500M V2 is protected by a metal casing, and offers an easy and cost-effective gigabit Ethernet solution for users looking to extend home networks and fulfill their online gaming, multimedia transfer and streaming needs.

  • Connects smart TVs, Blu-ray players, game consoles, and media players to the network
  • Optimized performance for 1080p video, streaming audio, gaming, and VoIP applications
  • Supports port-based QoS for high, medium, and low priority connections
  • Supports IGMP snooping v1/v2
  • Supports jumbo frames up to 9K bytes
  • Supports IEEE 802.3az Energy Efficient Ethernet
  • Built-in full range 100-240V internal power supply

Optimize Bandwidth through VIP Ports

The ES-5500M V2 comes with port-based QoS, providing significantly more efficient downloads. Through prioritized bandwidth settings, users can experience better performance when surfing the Internet, gaming online, or streaming multimedia.



IEEE Energy Efficient Ethernet (EEE) Compliance

The ES-5500M V2 is environmentally friendly while still providing the fast Ethernet speeds critical for next-generation network applications. It complies with the IEEE802.3az standard, providing power saving functions to reduce energy consumption by up to 70%, thus helping businesses reduce costs.



Supports High-Speed Networking and Jumbo Frames

The ES-5500M V2 is an excellent solution for users looking to expand their gigabit Ethernet network, it offers gigabit speeds, high flexibility, and high bandwidth connectivity to servers, workstations and other attached devices. In addition, it also supports jumbo frames up to 9K in size, which improves network utilization when transferring large files.



Easy to Use

The ES-5500M V2 supports plug-and-play and all kinds of network protocols, so installation and network management are quick and easy. LED indicators provide port and switch information at a glance.

*Kinerja maksimal, kecepatan data yang aktual, dan jangkauan tergantung dari kondisi jaringan serta faktor lingkungan sekitar.
*Resolusi visual aktual dan kecepatan frame kamera jaringan tergantung dari kecepatan koneksi.
*Perubahan spesifikasi produk dan desain dilakukan tanpa adanya pemberitahuan.



Standards
Features
Filtering/Forwarding Rates
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x  Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
  • 5 RJ-45 Ports
  • MAC Address: 2K
  • Buffer Memory: 128K
  • Jumbo Frame: 9K
  • Transmission Method: Store and Forward
  • 1000Mbps – 1,488,000pps
  • 100Mbps – 148,800pps
  • 10Mbps – 14,880pps
Transmission Media
LED Indicators
Power Requirement
  • 10BASE-T Cat. 3, 4, 5 UTP/STP
  • 100BASE-TX Cat. 5 UTP/STP
  • 1000BASE-T Cat. 5E UTP/STP
  • Per Port: Link/Act
  • Per Unit: Power
  • 100 to 240V AC, 50/60Hz
Power Consumption
Dimensions

Weight

  • 3 Watts (Max)
  • 149 × 84 × 26 mm (L x W x H)
  • 0.3kg
Temperature
Humidity
Certifications
  • Operating: 0 to 40℃
  • Storage: -40 to 70℃
  • Operating: 10 to 90% RH (Non-condensing)
  • Storage: 5 to 95% RH (Non-condensing)
  • CE, FCC Class B

*Kinerja maksimal, kecepatan data yang aktual, dan jangkauan tergantung dari kondisi jaringan serta faktor lingkungan sekitar.
*Resolusi visual aktual dan kecepatan frame kamera jaringan tergantung dari kecepatan koneksi.
*Perubahan spesifikasi produk dan desain dilakukan tanpa adanya pemberitahuan.
